MATERIAL: C-110 half hard temper copper
APPLICATION: For multi-grounded neutral construction. Provides efficient, low resistance neutral ground at low cost. They are less expensive and easier to install than butt wrapping poles. Features four 3/16” nail holes and high pressure connectors for ground wire. The bar type and the eyebolt type ground wire connectors are both designed to provide high pressure contact between the wire and the plate for a permanent low resistance connection. All connector parts and screws are corrosion resistant brass, bronze, copper or stainless steel.

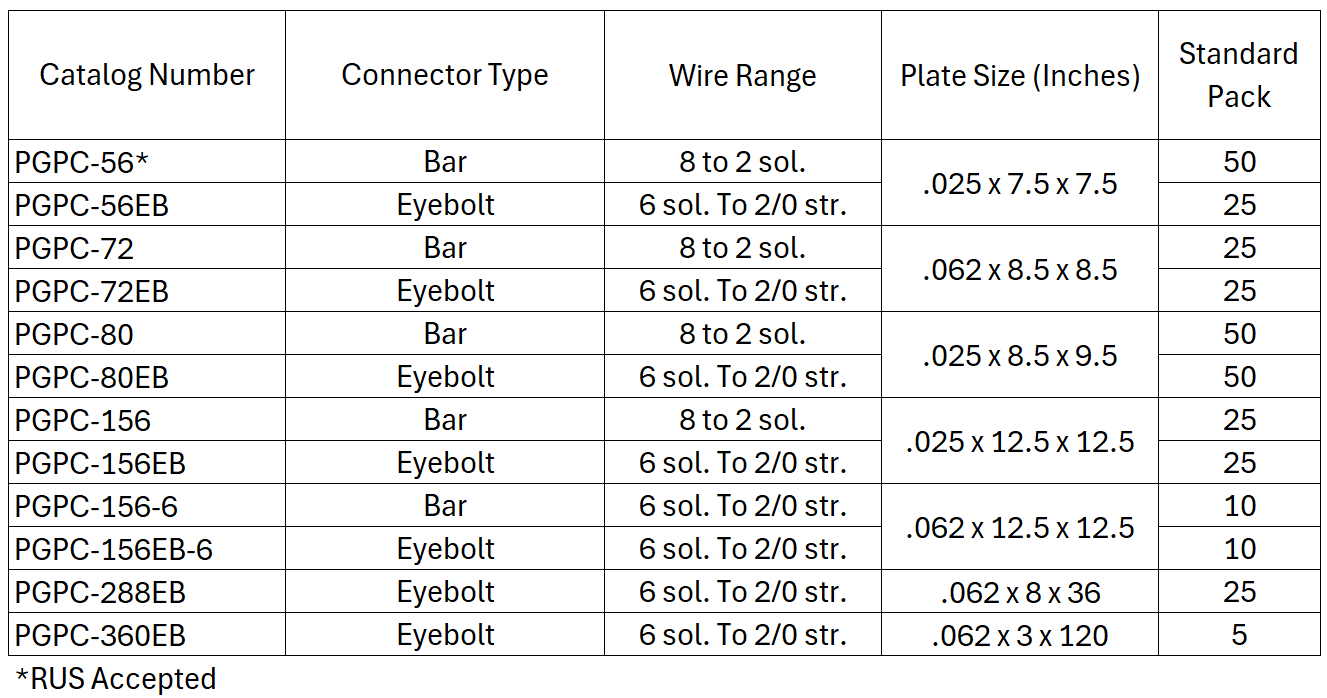

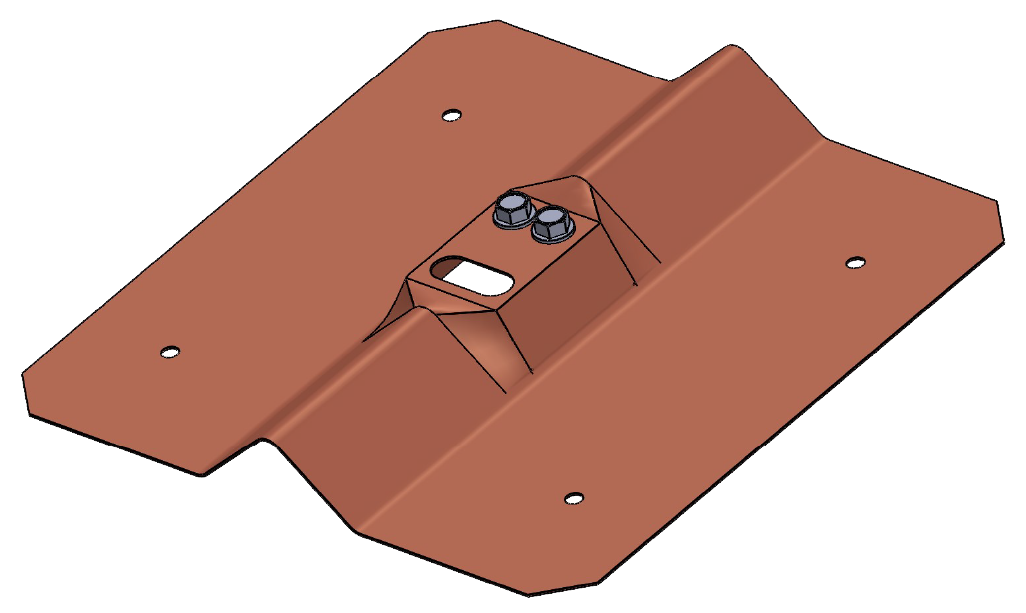

PGPC-56*

PGPC-72

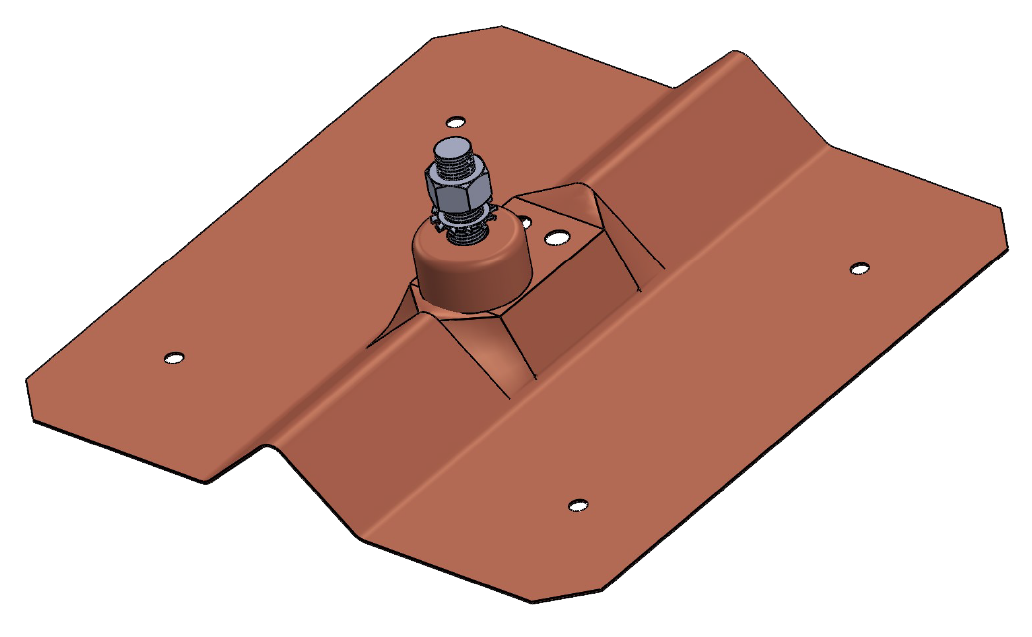

PGPC-56EB

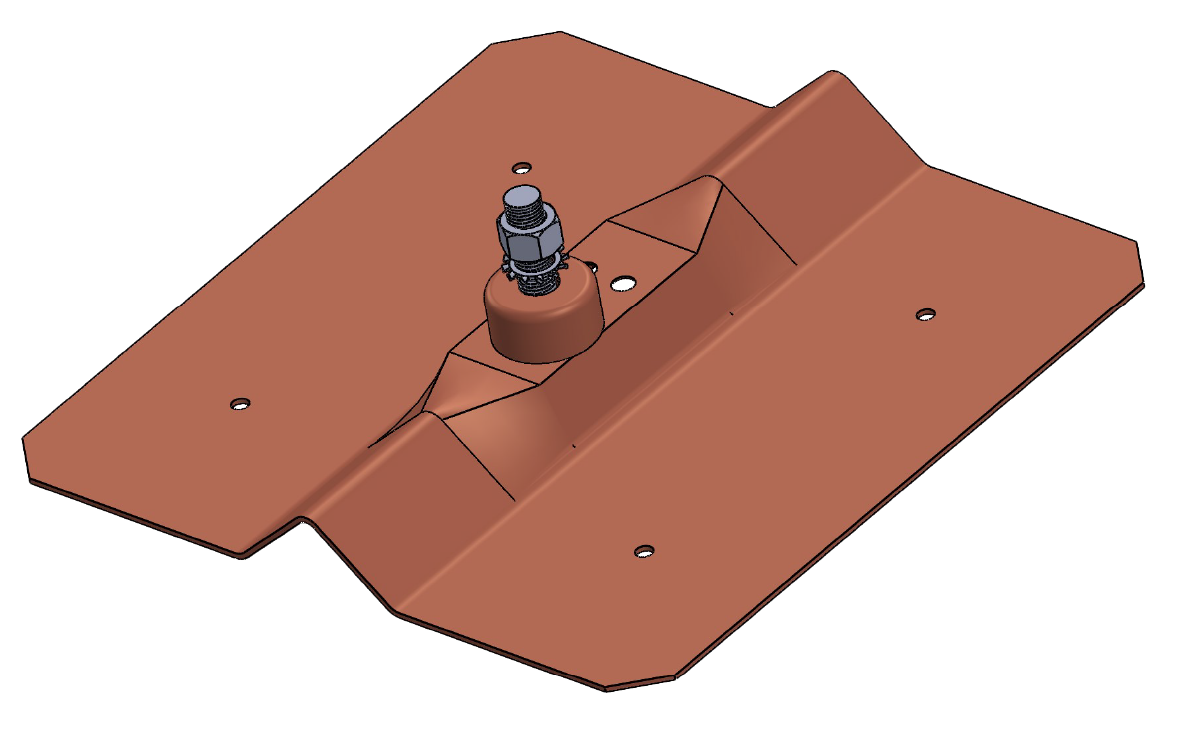

PGPC-72EB

ALL COPPER POLE GROUND PLATES ARE PROUDLY MADE IN AMERICA AT OUR
PACIFIC, MISSOURI MANUFACTURING FACILITY

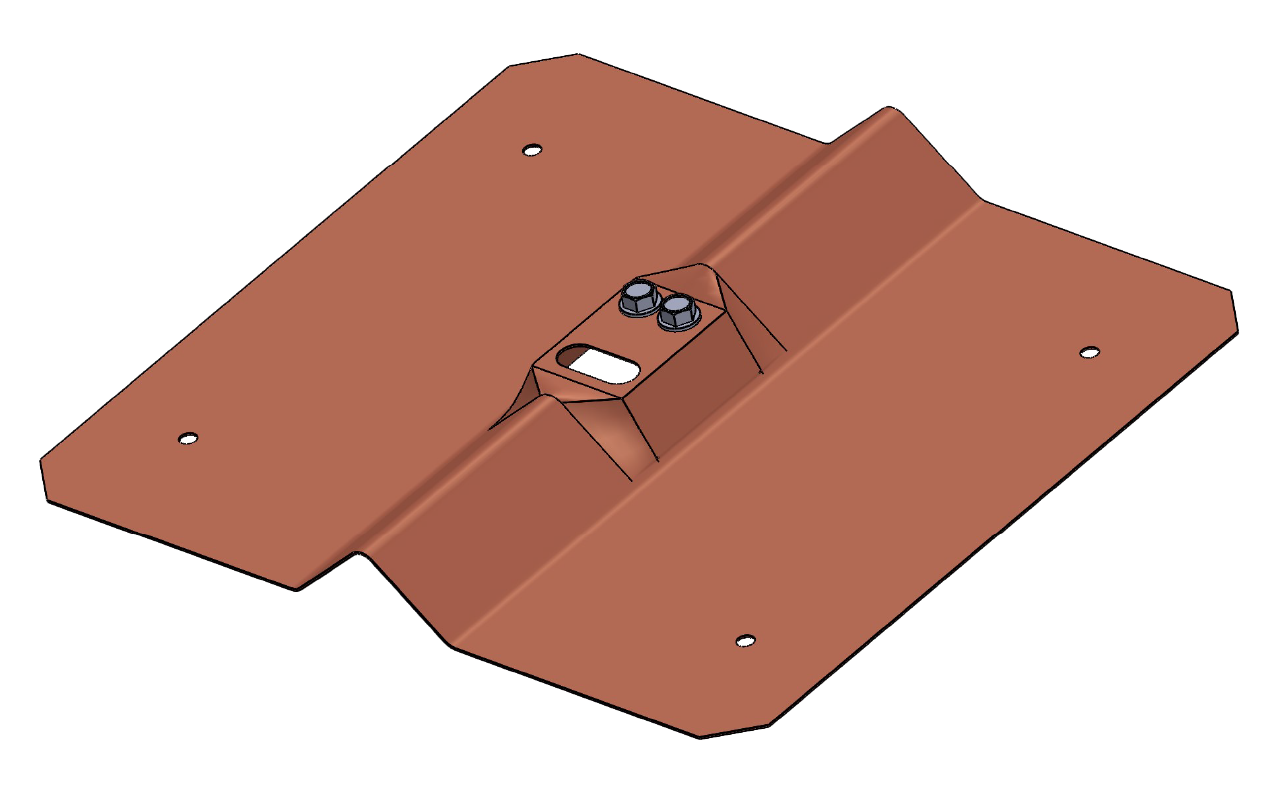

PGPC-80

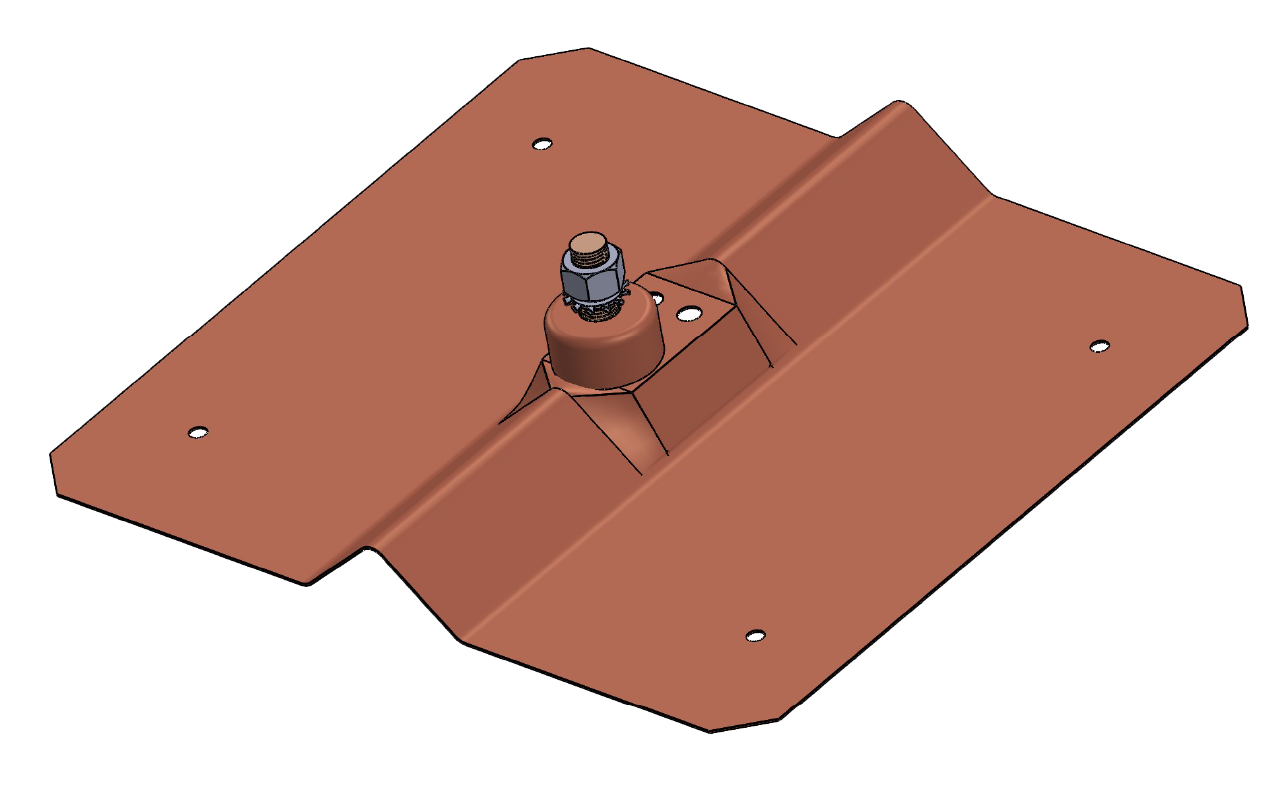

PGPC-80EB

PGPC-288EB

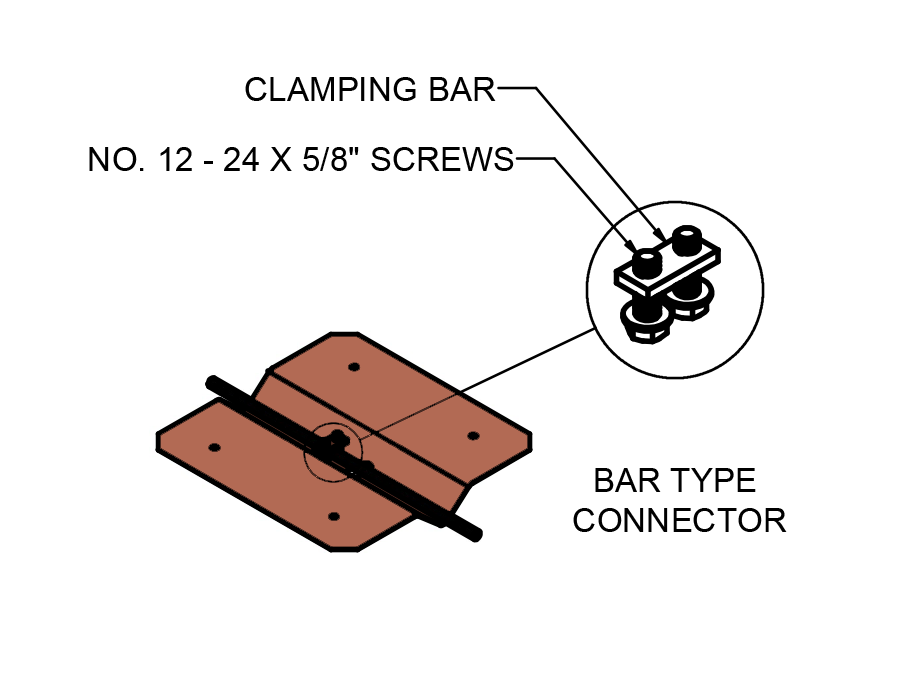

BAR CONNECTOR ASSEMB

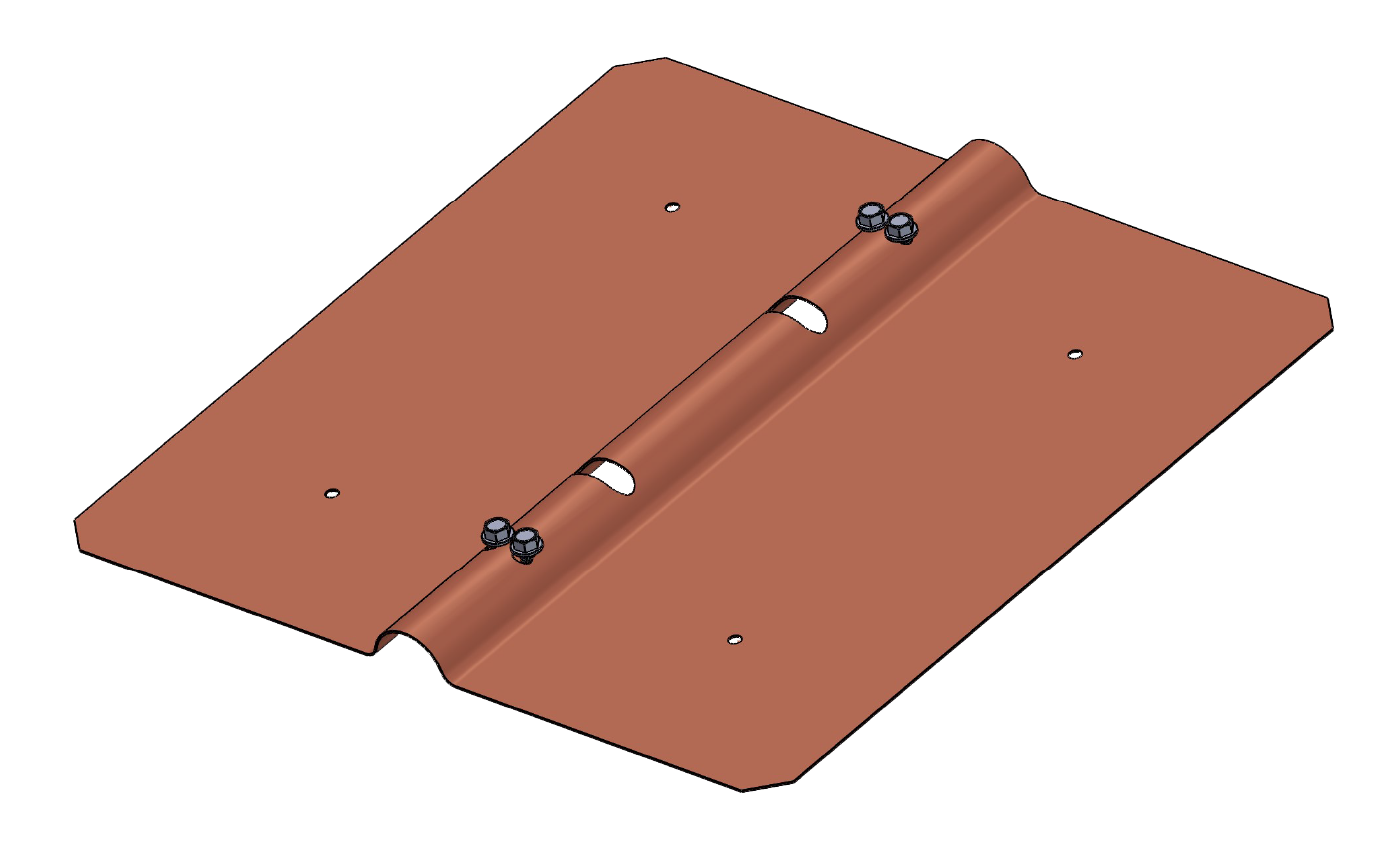

PGPC-156E

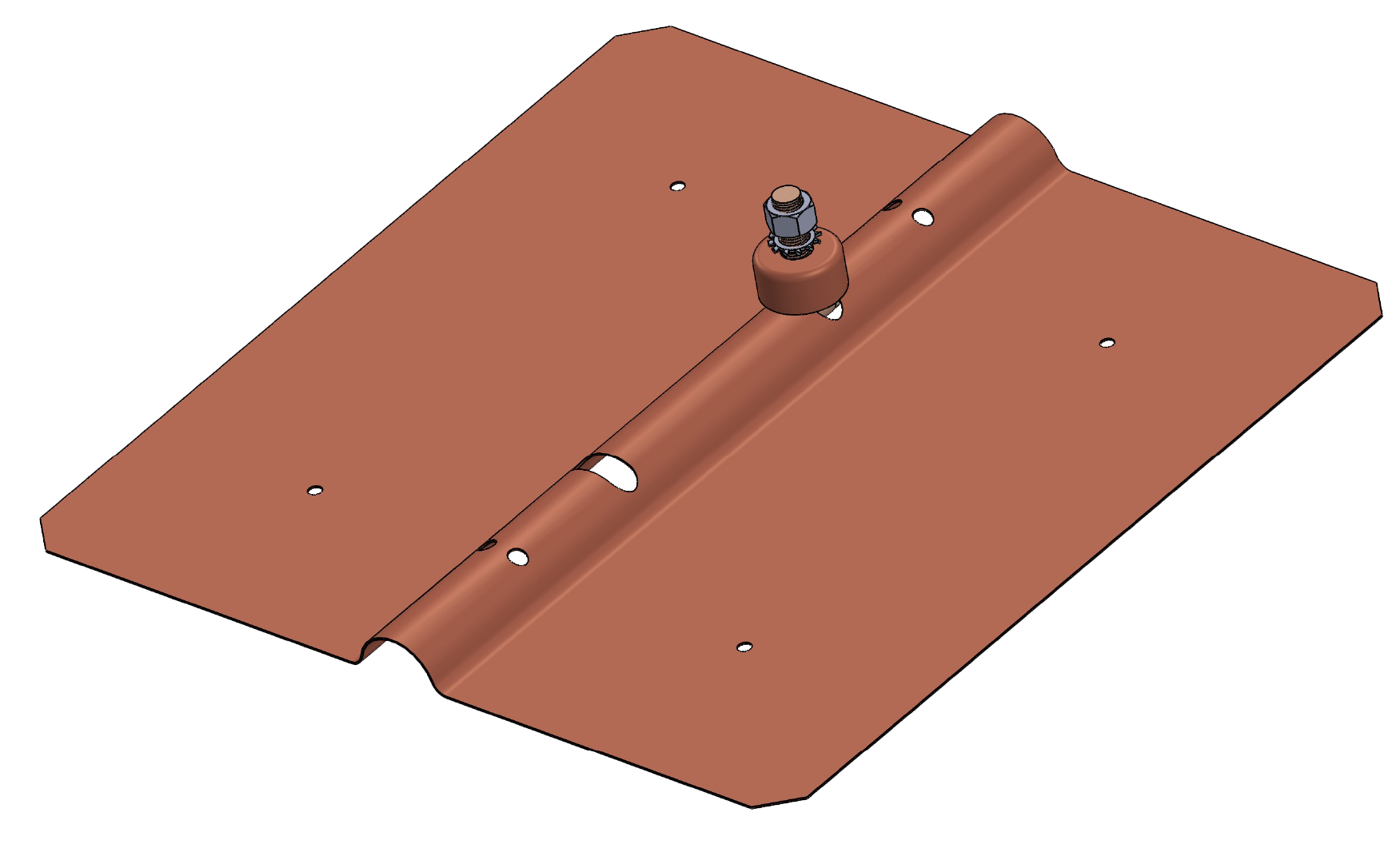

PGPC-156EB

PGPC-360EB

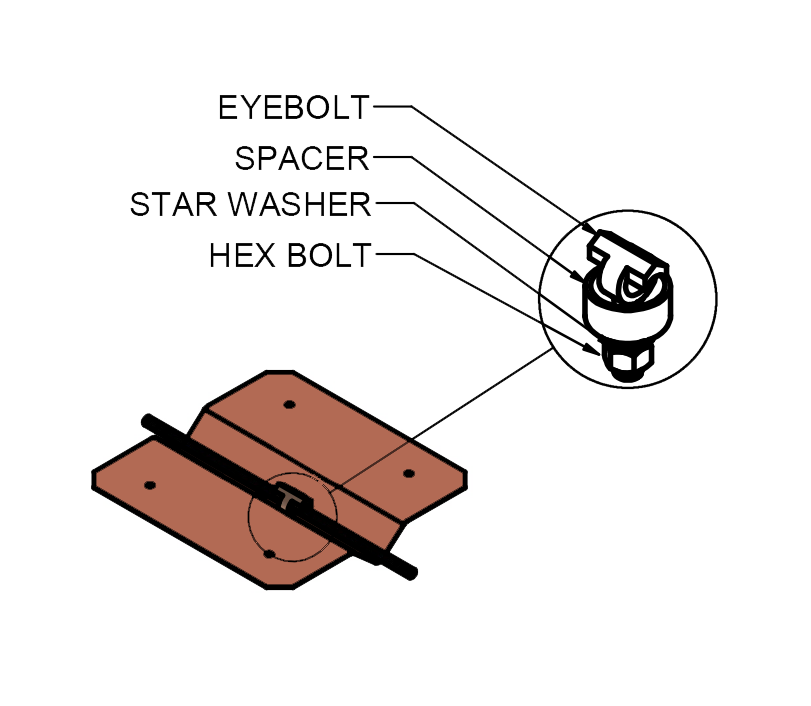

EYE BOLT ASSEMBLY
