Line Hardware

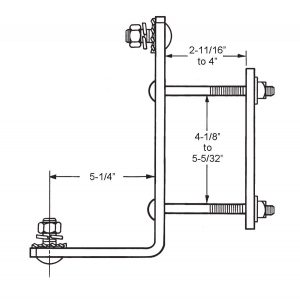

CB-Type
| CATALOG NUMBER |
Dimensions (inches) |
Steel Size (inches) |
|||
| A | B | C |
Angle Bracket |
Mounting Strap |
|
| CB-1 | 7-1/2 | 5 | 9 | 2 x 1 x 3/16 channel |
3/8 x 2 bar |
| CB-2 | 7-1/2 | 11 | 9 | ||
| CB-3 | 10-1/2 | 12 | 12 | ||
CB-T Type
| CATALOG NUMBER |
Dimensions (inches) |
Steel Size (inches) |
|||
| A | B | C |
Angle Bracket |
Mounting Strap |
|
| CB-1T | 7-1/2 | 5 | 9 | 2 x 1 x 3/16 channel |
3/8 x 2 bar |
| CB-2T | 7-1/2 | 11 | 9 | ||
| CB-3T | 10-1/2 | 12 | 12 | ||
CB-L Type (angle only)
| CATALOG NUMBER |
Dimensions (inches) |
Steel Size (inches) |
|||
| A | B | C |
Angle Bracket |
Mounting Strap |
|
| CB-1L | 7-1/2 | 5 | – | 2 x 1 x 3/16 channel |
– |
| CB-2L | 7-1/2 | 11 | – | ||
| CB-3L | 10-1/2 | 12 | – | ||
LIGHT STEEL TYPE
| CATALOG NUMBER |
Dimensions (inches) |
Steel Size (inches) |
|||
| A | B | C |
Angle Bracket |
Mounting Strap |
|
| CB-4 | 9 | 5 | 9 |
2 x 9/16 x 3/16 channel |
3/8 x1-1/2 bar |
| CB-9 | 9-11/16 | 8 | 9 | ||
MATERIAL: A36 hot rolled steel. All bolts, nuts and washers are steel.
FINISH: Hot dip galvanized per ASTM A-153.
.
EQUIPMENT MOUNTING HARDWARE: Consists of ½” x 2″ captive carriage bolts with external tooth washers, split lockwashers and hex nuts.
GROUND LUGS: To order brackets with ground lugs (pictured on page A-7) add “GL” to catalog number. Example: CB-2-GL.
POLE MOUNTING HOLES: All brackets are designed for mounting to pole with two 5/8″ diameter bolts.
